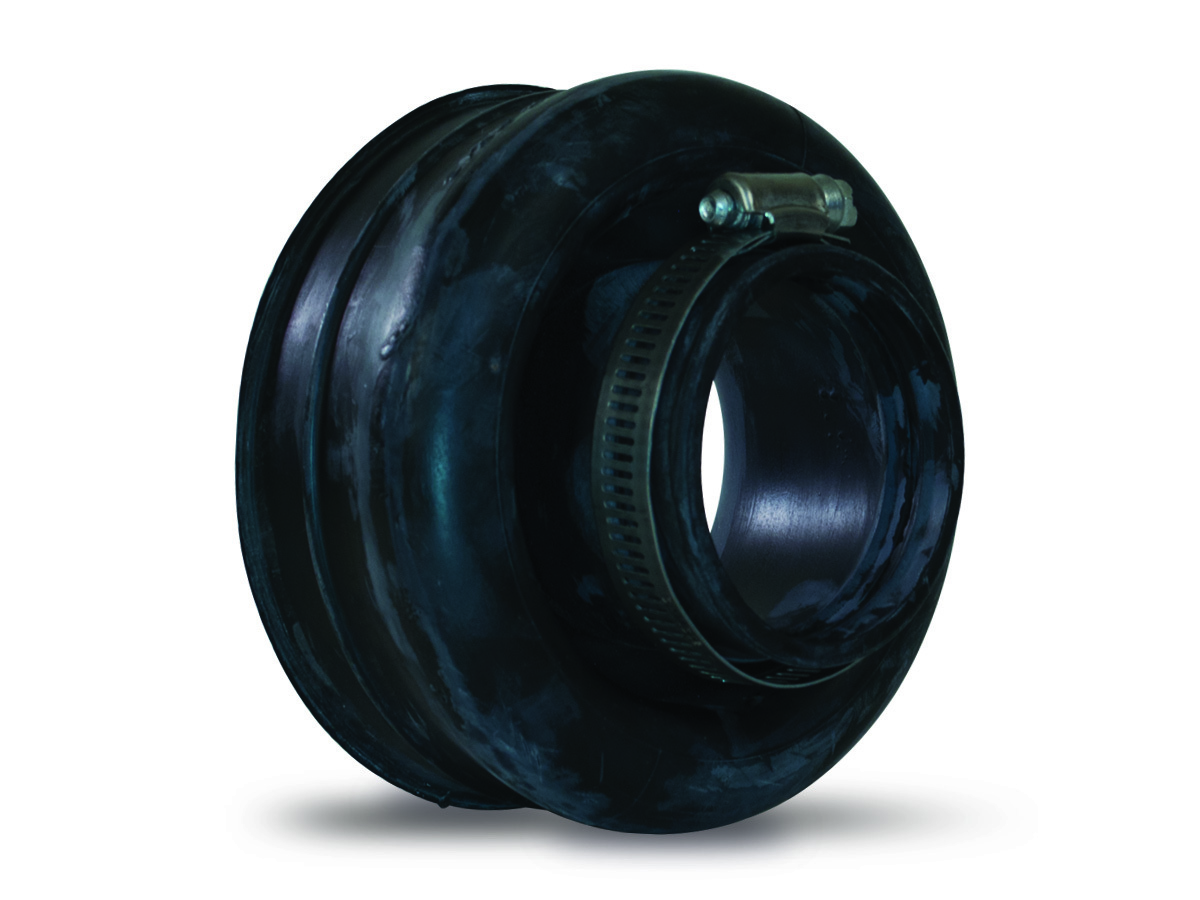

Casing End Seals Model S with EPDM, 8 X 12 NPS, 8.625 Inch OD X 12.750 Inch OD, Standard Pull-on

MOD S 8X12
Casing End Seals Model S with EPDM, 8 X 12 NPS, 8.625 Inch OD X 12.750 Inch OD, Standard Pull-on
  • Style/Model: Model S
  • Material: EPDM
  • NPS Carrier OD: 8
  • NPS Casing OD (inch): 12
  • Casing OD (Inch: 12.750
  • Carrier OD (Inch): 8.625
  • Max Temperature (C): 121
  • Max Temperature (F): 250
  • Primary Dimensional Unit of Measure: Imperial

Garlock Model S End Seals offer a dependable, economical solution for sealing the space between casing and carrier pipes in new installations. Stocked in a wide range of sizes and made from flexible, UV-resistant rubber, these slip-on seals are easy to install and provide long-lasting protection using included stainless-steel clamps. With a fast turnaround and tool-light assembly, Model S is ideal for utility and infrastructure projects requiring reliable, field-ready performance.

Built for straightforward installations, Model S is designed to fit standard steel and IPS piping combinations without the need for customization. Its slip-on design makes installation simple, while the rugged rubber construction delivers strong sealing performance in underground and above-ground environments.

For misaligned or off-center pipe applications, choose Model W or Model C. For compact inventory and field trimming, use Model R.

  • Overview

Features and Benefits:

  • Slip-on design allows for fast, straightforward installation without the need for custom sizing.
  • Stocked in a wide range of standard sizes to support quick delivery and reduce lead times.
  • Flexible rubber construction conforms to pipe surfaces for a secure, reliable seal.
  • Includes stainless steel clamps to ensure tight, long-lasting sealing at both casing and carrier pipe ends.
  • UV- and moisture-resistant material maintains performance in outdoor and underground environments.
  • Engineered to perform for the full-service life of the pipeline, reducing long-term maintenance needs.
  • Ideal for use with standard steel and IPS piping combinations in utility and energy infrastructure.
  • Simple installation process reduces labor requirements and overall project costs.
  • Effectively blocks out water, soil, and debris to protect pipeline integrity.
  • Optimized for new construction projects where alignment is consistent and field adjustments are minimal.

Typical Applications:

  • Custom Pipeline Projects
  • New Utility Installations with Standard Pipe Sizes
  • Road and Rail Utility Crossings
  • Municipal Water and Sewer Systems
  • Oil & Gas Transmission Infrastructure
  • Electrical and Communication Duct Banks
  • Stormwater and Drainage Systems
  • Power Generation and Utility Facilities
  • Industrial Sites with Consistent Piping Layouts
  • Pump Stations and Equipment Vault Penetrations

Industries Served:

  • Oil and Gas
  • Water and Wastewater
  • Hydrogen
  • Battery Manufacturing
  • Semiconductor
  • Data Centers
  • Chemical Processing
