PS-SEAL® PTFE Rotating Shaft Seals

PS-SEAL PTFE rotating shaft seals excel under high pressure and in extreme vacuum.

PS-SEAL® PTFE Rotating Shaft Seals give you best-in-class sealing performance for a wide range of high-speed and extreme pressure conditions.

Where others fail, PS-SEAL® reliably seals rotating shafts at high circumferential speeds, high pressures, and extreme temperatures. PS-SEAL®'s excellent chemical resistance makes it well suited for food and pharma applications, including those where FDA approval is required.

Available in a wide variety of standard or custom styles and materials, the PS-SEAL® utilizes high-performance GYLON® modified PTFE to maintain contact between the seal and shaft. The result is a seal that can withstand pressures up to 50 times that of standard lip seals, surface speeds up to 45 m/s, and temperatures up to 500º F (260ºC), in both dry and abrasive environments.

The portfolio of Garlock PS-SEAL®s includes standard, non-standard, and special customized seals.

Click here for a library of PS-SEAL® resources, such as case studies and product literature, or learn more via one of our product videos.

Garlock PS-SEAL PTFE Rotating Shaft Seals are excellent in high circumferential speeds.

PS-SEAL® Standard PTFE Rotating Shaft Seals

PS-SEAL® Standard is a Garlock shaft seal consisting of a stainless steel (1.4571) case, a GYLON® BLACK seal lip, and a static sealing element made of FKM.

Click here to browse PS-SEAL® Standard shaft seals.
Companies in the pulp and paper industry look to Garlock for the unique sealing solutions they require.

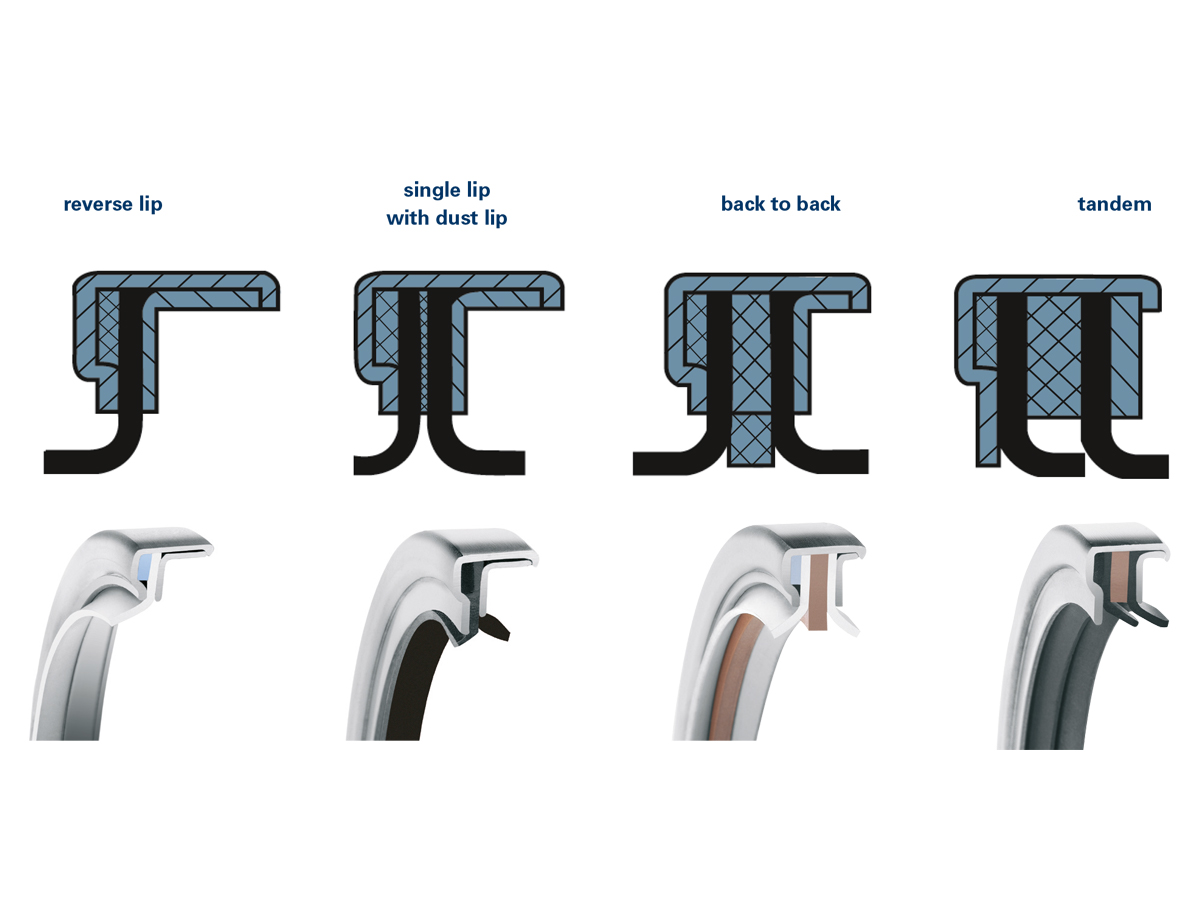

PS-SEAL Non-Standard PTFE Rotating Shaft Seals

Garlock PS-SEAL Non-Standard Seals are configurable in multiple case sizes with options for both seal lip configurations and materials, offering an economic solution for custom seals.

For more complex needs, PS-SEALs can be created based on your specifications.

Click here to contact our specialists and learn more about PS-SEAL Non-Standard PTFE Rotating Shaft Seals.

Garlock offers many marine use, waterproof, abrasion and chemical resistant sealing solutions perfect for the water and wastewater industry.

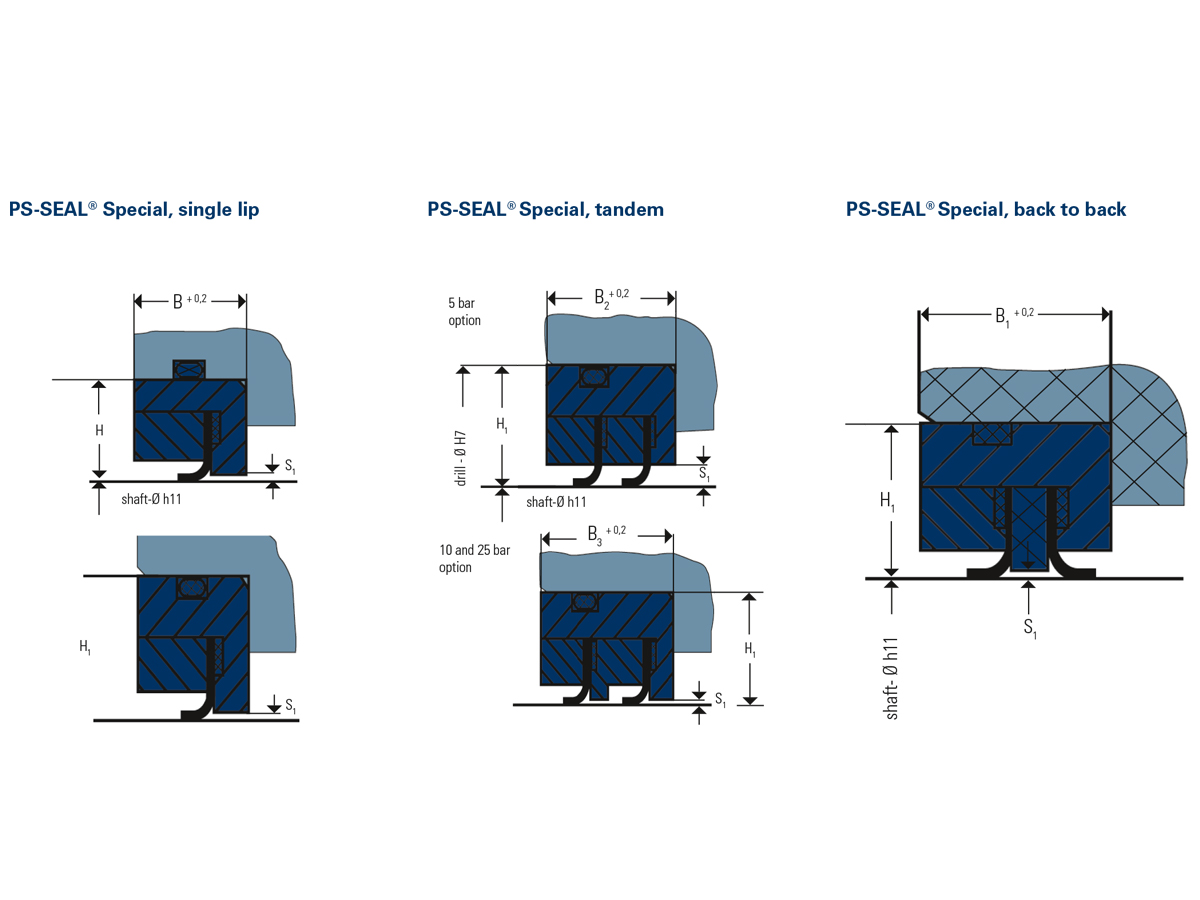

PS-SEAL® Special PTFE Rotating Shaft Seals

For more unique requirements, PS-SEAL® Special offers sealing options with single and multiple lip assemblies for complex applications.

Click here to contact our specialists and learn more about PS-SEAL Special Configuration options.

PS-SEAL® Product Videos

View the videos below to learn more about Garlock's PS-SEAL® and see it in action.

Ask an Engineer - Solving Challenges for Sealing Mixer Shafts

Introducing the PS-SEAL® by Garlock

PS-SEAL Resources

PS-SEAL Product Literature

PS-SEAL 3D Models

PS-SEAL Application Video

PS-SEAL Case Studies

Where is PS-SEAL® Used?

The PS-SEAL®, leveraging GYLON® material, is essential for sealing rotating shafts under challenging conditions such as high speeds, pressures, and temperatures from -130˚F to 500˚F. It's optimally used in equipment like Pumps, Agitators, Mills, Grinders, Mixers, Dryers, and Screw Conveyors, where traditional seals falter. Additionally, it enhances the reliability of Dosing Systems, Decanters, Separators, and Gearboxes by preventing leaks and contamination. Its robust performance and compatibility with FDA standards make it ideal for the food and pharmaceutical industries, demonstrating its wide-ranging applicability and effectiveness in various demanding industrial environments.

Combat Industrial Contamination with PS-SEAL®

PS-SEAL®, designed with a smooth surface and open structure, is the ideal solution for industries facing contamination concerns. Its easy-to-clean design effectively guards against:

  • Bacterial Growth: Reduces bacterial contamination by allowing thorough sanitation.
  • Foreign Particles: Seals out debris, maintaining process integrity.
  • Chemical Contamination: Resists various chemicals, safeguarding equipment performance.
  • Difficult-to-Clean Equipment: Simplifies cleaning, mitigating contamination risks.

PS-SEAL® addresses critical industrial challenges, offering a protective barrier against contamination and ensuring operational cleanliness and efficiency.
