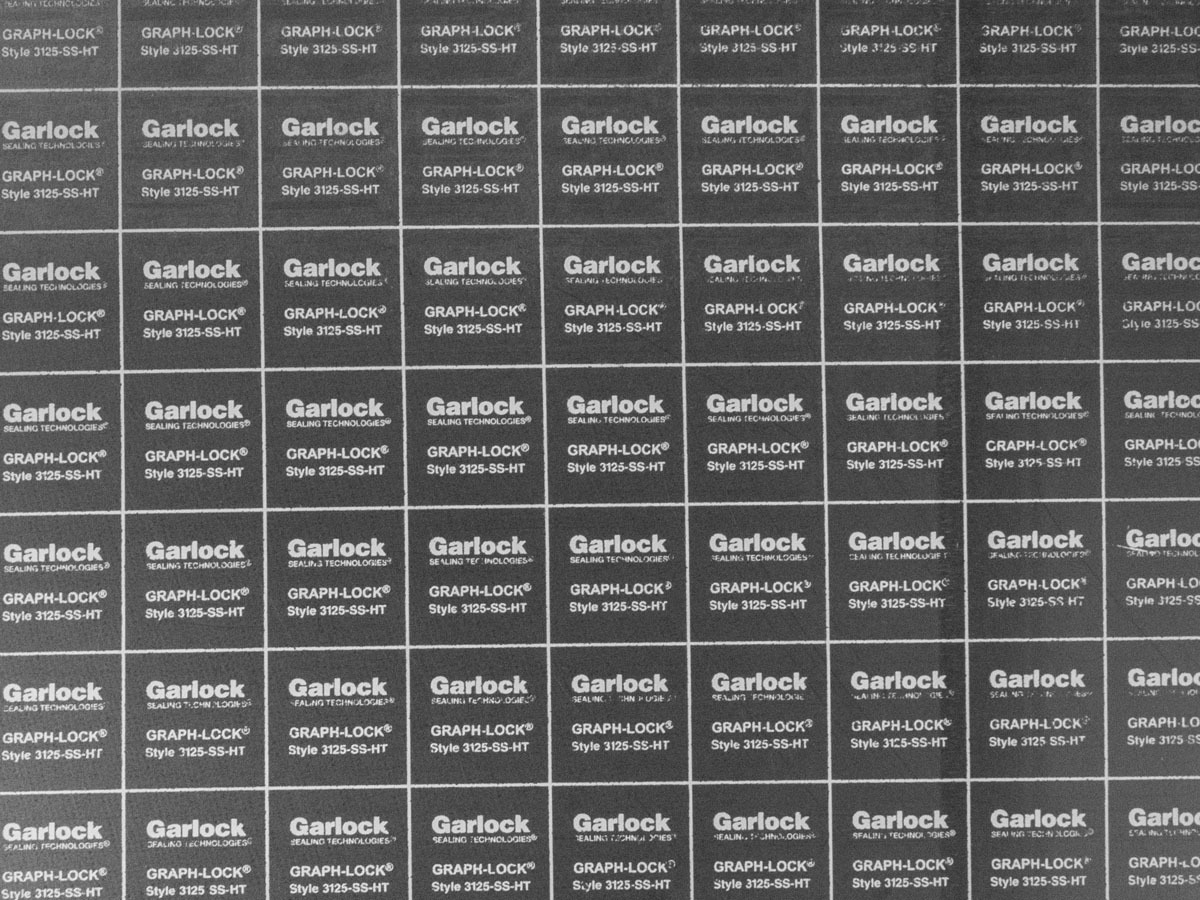

GRAPH-LOCK® Style 3125-SS-HT Flexible Graphite Gasket Sheet,, 316SS Foil, Branded, 0.120 Inch, 59.1 Inch Width, 59.1 Inch Length, High Temperature Version

31256-7024
GRAPH-LOCK® Style 3125-SS-HT Flexible Graphite Gasket Sheet,, 316SS Foil, Branded, 0.120 Inch, 59.1 Inch Width, 59.1 Inch Length, High Temperature Version
  • Shipping Weight: 0 lbs
  • Brand: GRAPH-LOCK®
  • Style/Model: Style 3125-SS-HT
  • Composition: Graphite
  • Compliances/Standards: REACH Compliant
  • Insert: 316SS Foil
  • Thickness (inch): 0.120
  • Thickness (mm): 3.0
  • Width (inch): 59.1
  • Width (mm): 1501.1
  • Length (inch): 59.1
  • Length (mm): 1501.1
  • Temperature Range (F): -450°F - 1000°F
  • Temperature Range (C): -268°C - 538°C
  • Pressure Max (psi): 2000
  • Pressure Max (bar): 140
  • Color: Black
  • Compliances: REACH Compliant
  • Fiber: Graphite
  • Max Temperature (C): 538
  • Max Temperature (F): 1000
  • Min Temperature (C): -268
  • Min Temperature (F): -450
  • Primary Nominal Thickness: 1/8 in
  • Standard/Special: Special
  • Primary Dimensional Unit of Measure: Imperial
  • Branding: Branded
