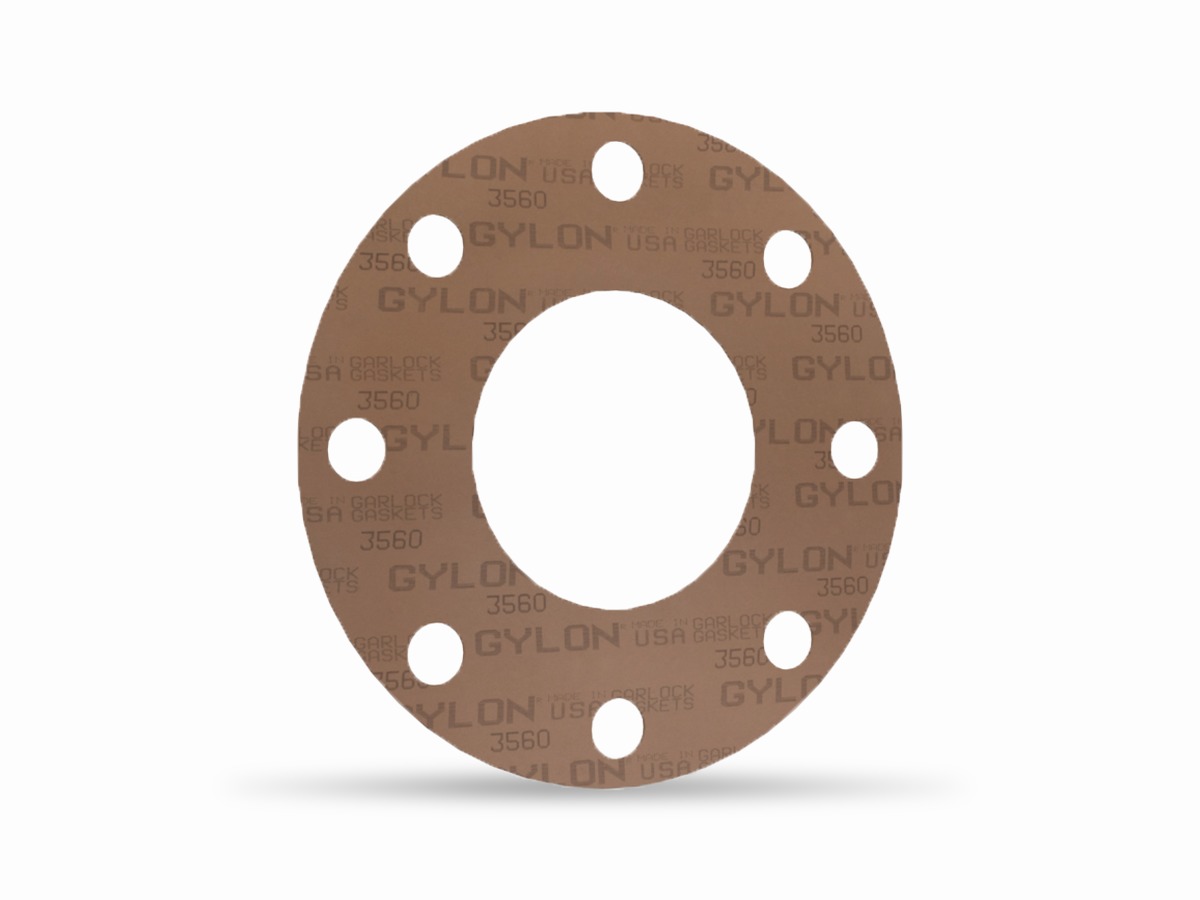

GYLON® Style 3560 Full Face Gasket, PTFE with Silica and Perforated 316L SS Insert, 8 Inch ASME B16.5 Class 150, 0.063 Inch Thick, 8 Bolt Holes

37356-4108
GYLON® Style 3560 Full Face Gasket, PTFE with Silica and Perforated 316L SS Insert, 8 Inch ASME B16.5 Class 150, 0.063 Inch Thick, 8 Bolt Holes
  • Shipping Weight: 0.555 lbs
  • Gasket Type: Full Face
  • Style/Model: Style 3560
  • Pipe Standard and Class: ASME B16.5 Class 150
  • Compliances/Standards: REACH Compliant, RoHS Compliant
  • Nominal Pipe Size Fraction (Inch): 8
  • Thickness (inch): 0.063
  • Composition: PTFE with Silica and Perforated 316L SS Insert
  • Temperature Range (F): -150°F - 500°F
  • Temperature Range (C): -101°C - 260°C
  • Pressure Max (psi): 2500
  • Pressure Max (bar): 172
  • Bolt Circle Diameter (Inch): 11.750
  • Bolt Circle Diameter (mm): 298.45
  • Bolt Hole Diameter (Inch): 0.875
  • Bolt Hole Diameter (mm): 22.23
  • Bolt Hole Quantity: 8
  • Brand: GYLON®
  • Color: Fawn
  • Compliances: REACH Compliant, RoHS Compliant
  • Flange Standards/Pressure Class: ASME B16.5 Class 150
  • Inside Diameter (Inch): 8.625
  • Inside Diameter (mm): 219.08
  • Min Temperature (C): -101
  • Min Temperature (F): -150
  • Nominal Pipe Size (inch): 8.000
  • Nominal Pipe Size DN (mm): 200.0
  • Outside Diameter (inch): 13.500
  • Outside Diameter (mm): 342.90
  • Pressure Class: 150
  • Primary Nominal Thickness: 1/16 in
  • Rubber Material: PTFE
  • Rubber Material Abbreviation: PTFE
  • Primary Dimensional Unit of Measure: Imperial
  • Branding: Branded
  • Thickness (mm): 1.60

GYLON® Style HP 3560 is high performance, silica filled PTFE gasketing material that contains perforated 316L stainless steel insert for improved pressure resistance (can withstand up to 2,500 PSI).

  • Overview

Features and Benefits:

  • Tight seal
  • Perforated stainless steel core increases resistance to pressure fluctuations and thermal cycling
  • GYLON® offers superior cold flow and creep resistance, eliminating the need for frequent retorquing
  • Chemical resistance
  • Seals aggressive chemicals in hostile environments where safety or blowout resistance is crucial*
  • Will not support flame
  • Will not support bacterial growth

Media Use:

  • Solvents
  • Hydrocarbons
  • Water
  • Steam
  • Chlorine
  • Cryogenics

Industries Served:

  • Chemical Processing
  • Food and Beverage
  • Mining
  • Pharmaceutical
  • Primary Metals
  • Water and Wastewater
  • Pulp and Paper
  • Power Generation
  • Oil and Gas
  • Nuclear
