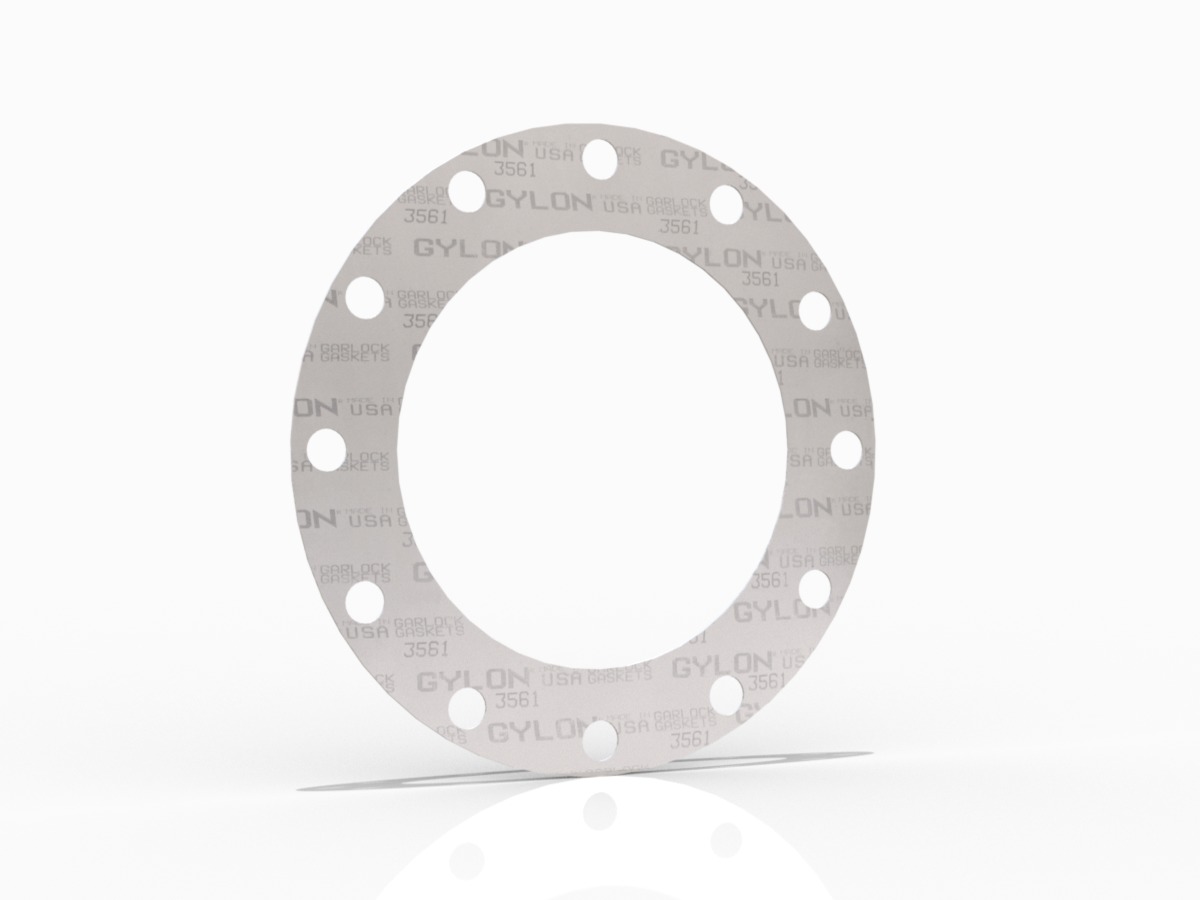

GYLON® Style 3561 Full Face Gasket, PTFE with Barium Sulfate and Perforated 316L SS Insert, 10 Inch ASME B16.5 Class 150, 0.063 Inch Thick, 12 Bolt Holes

37361-4110
GYLON® Style 3561 Full Face Gasket, PTFE with Barium Sulfate and Perforated 316L SS Insert, 10 Inch ASME B16.5 Class 150, 0.063 Inch Thick, 12 Bolt Holes
  • Shipping Weight: 0.346 lbs
  • Gasket Type: Full Face
  • Style/Model: Style 3561
  • Pipe Standard and Class: ASME B16.5 Class 150
  • Compliances/Standards: REACH Compliant, RoHS Compliant
  • Nominal Pipe Size Fraction (Inch): 10
  • Thickness (inch): 0.063
  • Composition: PTFE with Barium Sulfate and Perforated 316L SS Insert
  • Temperature Range (F): -150°F - 500°F
  • Temperature Range (C): -101°C - 260°C
  • Pressure Max (psi): 2500
  • Pressure Max (bar): 172
  • Bolt Circle Diameter (Inch): 14.250
  • Bolt Circle Diameter (mm): 361.95
  • Bolt Hole Diameter (Inch): 1.000
  • Bolt Hole Diameter (mm): 25.40
  • Bolt Hole Quantity: 12
  • Brand: GYLON®
  • Color: Off-White
  • Compliances: REACH Compliant, RoHS Compliant
  • Flange Standards/Pressure Class: ASME B16.5 Class 150
  • Inside Diameter (Inch): 10.750
  • Inside Diameter (mm): 273.05
  • Min Temperature (C): -101
  • Min Temperature (F): -150
  • Nominal Pipe Size (inch): 10.000
  • Nominal Pipe Size DN (mm): 250.0
  • Outside Diameter (inch): 16.000
  • Outside Diameter (mm): 406.40
  • Pressure Class: 150
  • Primary Nominal Thickness: 1/16 in
  • Rubber Material: PTFE
  • Rubber Material Abbreviation: PTFE
  • UPC Code: 191074051569
  • Primary Dimensional Unit of Measure: Imperial
  • Branding: Branded
  • Thickness (mm): 1.60
