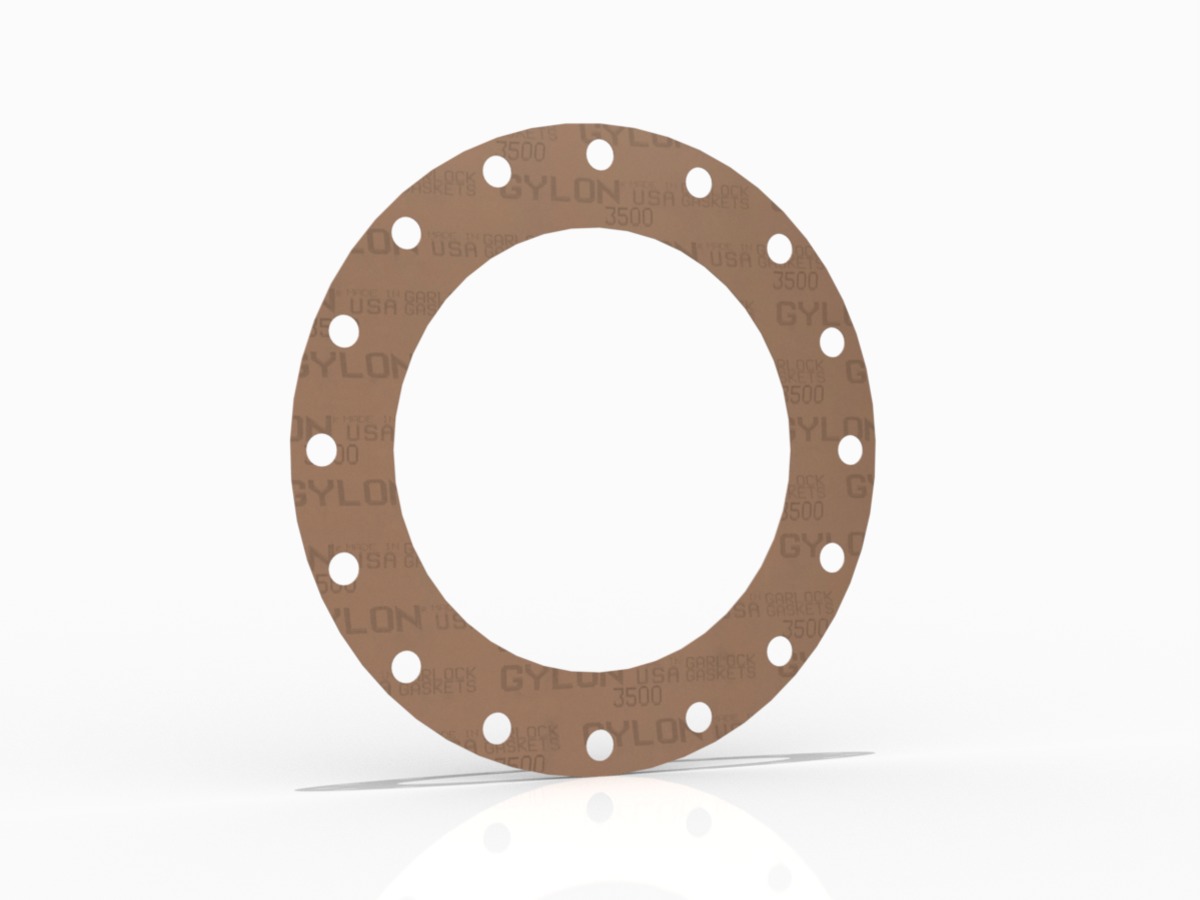

GYLON® Style 3500 Full Face Gasket, PTFE with Silica, 10 Inch ASME B16.5 Class 300, 0.125 Inch Thick, 16 Bolt Holes

37719-5210
GYLON® Style 3500 Full Face Gasket, PTFE with Silica, 10 Inch ASME B16.5 Class 300, 0.125 Inch Thick, 16 Bolt Holes
  • Shipping Weight: 1.51 lbs
  • Gasket Type: Full Face
  • Style/Model: Style 3500
  • Pipe Standard and Class: ASME B16.5 Class 300
  • Compliances/Standards: ADI/TSE Free, FDA Compliant, REACH Compliant, RoHS Compliant, USDA Approved, USP VI 87 Compliant, USP VI 88 Compliant
  • Nominal Pipe Size Fraction (Inch): 10
  • Thickness (inch): 0.125
  • Composition: PTFE with Silica
  • Temperature Range (F): -450°F - 500°F
  • Temperature Range (C): -268°C - 260°C
  • Pressure Max (psi): 1200
  • Pressure Max (bar): 83
  • Bolt Circle Diameter (Inch): 15.250
  • Bolt Circle Diameter (mm): 387.35
  • Bolt Hole Diameter (Inch): 1.125
  • Bolt Hole Diameter (mm): 28.58
  • Bolt Hole Quantity: 16
  • Brand: GYLON®
  • Color: Fawn
  • Compliances: FDA Compliant, REACH Compliant, RoHS Compliant, USDA Approved, USP VI 87 Compliant, USP VI 88 Compliant, ADI/TSE Free
  • Flange Standards/Pressure Class: ASME B16.5 Class 300
  • Inside Diameter (Inch): 10.750
  • Inside Diameter (mm): 273.05
  • Min Temperature (C): -268
  • Min Temperature (F): -450
  • Nominal Pipe Size (inch): 10.000
  • Nominal Pipe Size DN (mm): 250.0
  • Outside Diameter (inch): 17.500
  • Outside Diameter (mm): 444.50
  • Pressure Class: 300
  • Primary Nominal Thickness: 1/8 in
  • Rubber Material: PTFE
  • Rubber Material Abbreviation: PTFE
  • Primary Dimensional Unit of Measure: Imperial
  • Branding: Branded
  • Thickness (mm): 3.18

Pipe flange gasket material made from GYLON® Style 3500, which is a silica filled PTFE material designed for use with strong acids, solvents, hydrocarbons, and other aggressive media.

  • Overview

Features and Benefits:

  • Tight seal
  • Improved performance over conventional PTFE
  • Reduced product loss and emissions
  • Reduced creep relaxation
  • Unique manufacturing process minimizes cold flow problems typical of skived and expanded PTFE sheets
  • Excellent bolt torque retention
  • Withstands a wide range of chemicals for extended service life in a wide variety of applications
  • Will not support flame
  • Will not support bacterial growth

Media Use:

  • Strong acids (except hydrofluoric acid)
  • Solvents
  • Hydrocarbons
  • Water
  • Steam
  • Chlorine
  • Cryogenics

Industries Served:

  • Chemical Processing
  • Food and Beverage
  • Mining
  • Pharmaceutical
  • Primary Metals
  • Water and Wastewater
  • Pulp and Paper
  • Power Generation
  • Oil and Gas
  • Nuclear
