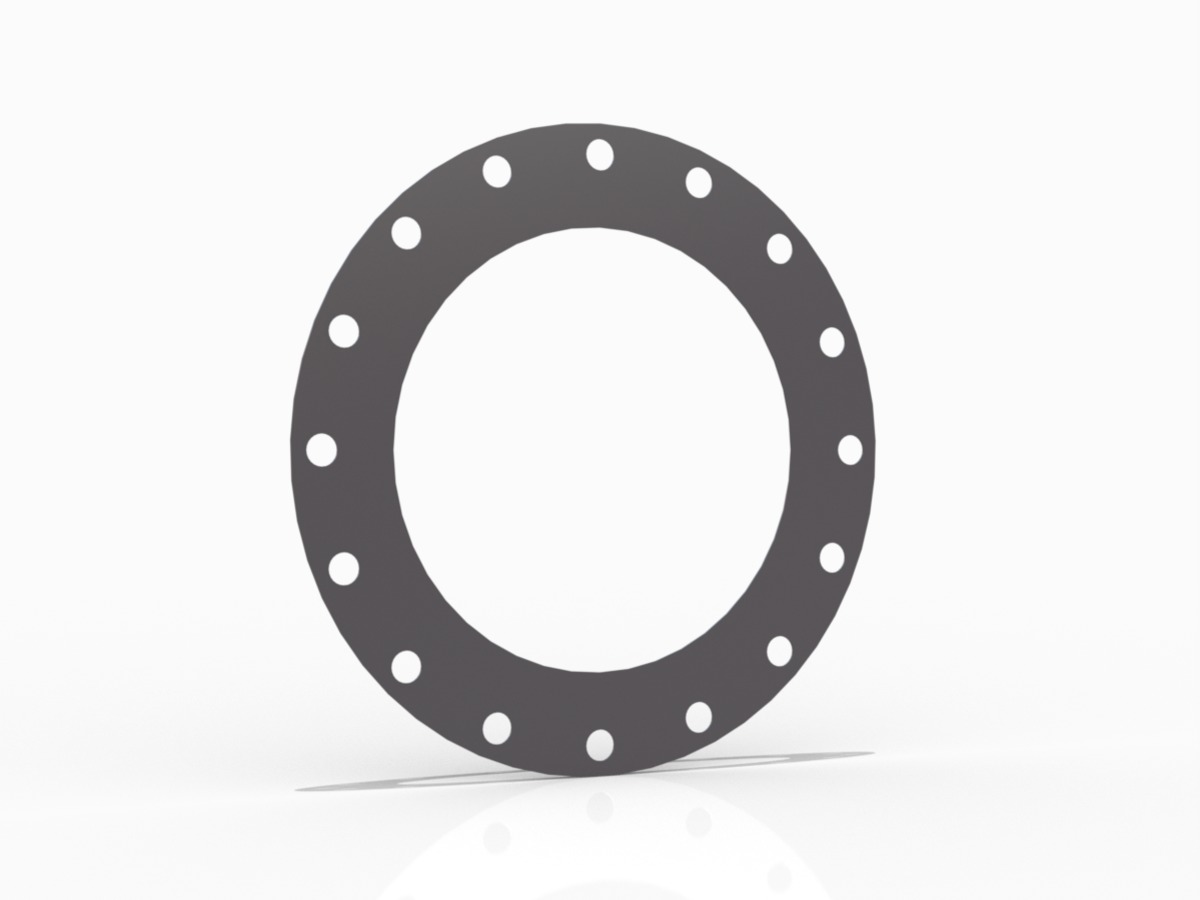

GYLON® Style 3530 Full Face Gasket, PTFE with Graphite, 18 Inch ASME B16.5 Class 150, 0.063 Inch Thick, 16 Bolt Holes
37723-6118
- Gasket Type: Full Face
- Style/Model: Style 3530
- Pipe Standard and Class: ASME B16.5 Class 150
- Compliances/Standards: REACH Compliant, RoHS Compliant
- Nominal Pipe Size Fraction (Inch): 18
- Thickness (inch): 0.063
- Shipping Weight: 0.717 lbs
- Composition: PTFE with Graphite
- Temperature Range (F): -450°F - 500°F
- Temperature Range (C): -268°C - 260°C
- Pressure Max (psi): 1200
- Pressure Max (bar): 55
- Bolt Circle Diameter (Inch): 22.750
- Bolt Circle Diameter (mm): 577.85
- Bolt Hole Diameter (Inch): 1.250
- Bolt Hole Diameter (mm): 31.75
- Bolt Hole Quantity: 16
- Brand: GYLON®
- Branding: Unbranded
- Color: Black
- Compliances: REACH Compliant, RoHS Compliant
- Flange Standards/Pressure Class: ASME B16.5 Class 150
- Inside Diameter (Inch): 18.000
- Inside Diameter (mm): 457.20
- Min Temperature (C): -268
- Min Temperature (F): -450
- Nominal Pipe Size (inch): 18.000
- Nominal Pipe Size DN (mm): 450.0
- Outside Diameter (inch): 25.000
- Outside Diameter (mm): 635.00
- Pressure Class: 150
- Primary Nominal Thickness: 1/16 in
- Rubber Material: PTFE
- Rubber Material Abbreviation: PTFE
- UPC Code: 191074115551
- Primary Dimensional Unit of Measure: Imperial
- Thickness (mm): 1.60
The GYLON® Style 3530 is a high performance, graphite filled PTFE gasketing material designed to withstand high concentrations of hydrofluoric acid and volatile hazardous air pollutants.
- 0b47fafe-ac86-4f71-9562-0711d2968e43(Technical Documents)
- 3f2f16e5-7f10-45b6-80d1-ff3f102cb847(Data Sheet)
- 608eda38-22c9-4e21-afd0-128f67608760(Technical Documents)
- 6e9bacfa-f954-4909-b9ba-655da7bacd08(Technical Documents)
- 70a3c3f7-c41c-4d43-bdc1-b71e0959b1c0(Installation Documents)
- 9a556a61-c347-4640-a1bd-46b7ee3ceb1d(Installation Documents)
- 9c8b5684-a50c-45c2-ac93-b7840812fbd5(Certifications & Compliances)
- c3c6c1fe-eed5-4b16-be5d-4dd4d10c2f4f(Technical Documents)
- c9f87940-6a7d-4b40-92e9-ba8e41494599(Data Sheet)
- de280494-4e27-4ab9-ab25-a0fab6219114(Certifications & Compliances)
- Overview
Features and Benefits:
- Tighter Seal
- Graphite-filled PTFE offers extremely low void content for minimal emissions
- Delivers effective, long lasting service against volatile hazardous pollutants (VHAP and VOC)
- Withstands high concentrations of hydrofluoric acids and other glass-dissolving media
- Will not support flame
- Will not support bacterial growth
Media Use:
- Monomer service
- Cryogenics
- Highly concentrated hydrofluoric acid
- Volatile hazardous air pollutants (VHAP)
Industries Served:
- Chemical Processing
- Food and Beverage
- Mining
- Pharmaceutical
- Primary Metals
- Water and Wastewater
- Pulp and Paper
- Power Generation
- Oil and Gas
- Nuclear
