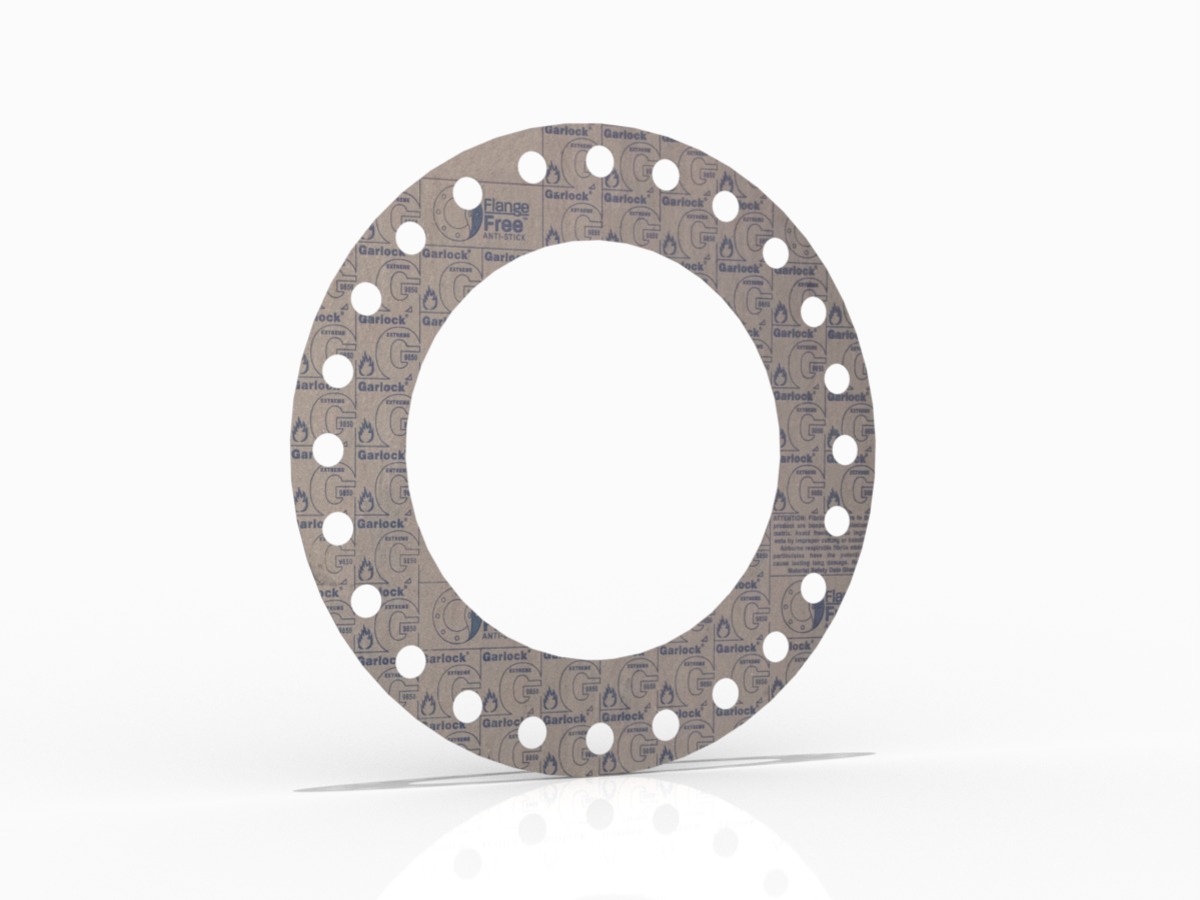

Style 9850 Full Face Gasket, Carbon Fiber with Nitrile Binder(NBR), 20 Inch ASME B16.5 Class 300, 0.063 Inch Thick, 24 Bolt Holes

37985-4220
Style 9850 Full Face Gasket, Carbon Fiber with Nitrile Binder(NBR), 20 Inch ASME B16.5 Class 300, 0.063 Inch Thick, 24 Bolt Holes
  • Gasket Type: Full Face
  • Style/Model: Style 9850
  • Pipe Standard and Class: ASME B16.5 Class 300
  • Compliances/Standards: REACH Compliant, RoHS Compliant
  • Nominal Pipe Size Fraction (Inch): 20
  • Thickness (inch): 0.063
  • Composition: Carbon Fiber with Nitrile Binder(NBR)
  • Temperature Range (F): -100°F - 900°F
  • Temperature Range (C): -73°C - 482°C
  • Pressure Max (psi): 2000
  • Pressure Max (bar): 138
  • Bolt Circle Diameter (Inch): 27.000
  • Bolt Circle Diameter (mm): 685.80
  • Bolt Hole Diameter (Inch): 1.375
  • Bolt Hole Diameter (mm): 34.93
  • Bolt Hole Quantity: 24
  • Brand: Garlock®
  • Color: Black
  • Compliances: REACH Compliant, RoHS Compliant
  • Fiber: Carbon
  • Flange Standards/Pressure Class: ASME B16.5 Class 300
  • Inside Diameter (Inch): 20.000
  • Inside Diameter (mm): 508.00
  • Max Temperature (C): 482
  • Max Temperature (F): 900
  • Min Temperature (C): -73
  • Min Temperature (F): -100
  • Nominal Pipe Size (inch): 20.000
  • Nominal Pipe Size DN (mm): 500.0
  • Outside Diameter (inch): 30.500
  • Outside Diameter (mm): 774.70
  • Pressure Class: 300
  • Primary Nominal Thickness: 1/16 in
  • Rubber Chemical Name: Acrylonitrile Butadiene
  • Rubber Material: Nitrile(NBR)
  • Rubber Material Abbreviation: NBR
  • Primary Dimensional Unit of Measure: Imperial
  • Branding: Branded
  • Thickness (mm): 1.60

Style 9850 gasket is composed of carbon fibers with a nitrile binder. This high temperature gasket has a long-lasting seal, which minimizes cold flow and creep relaxation problems.

  • Overview

Features and Benefits:

  • Excels in the harshest conditions - intense heat, high pressure, saturated steam* and hot oils
  • Laboratory-tested for fire safety.
  • Long-lasting seal
