Garlock KLOZURE® Model 61 Oil Seal, GYLON, 316SS, 4.872 in Shaft, 6.000 in Bore, 0.500 in Width

24060-8460
Garlock KLOZURE® Model 61 Oil Seal, GYLON, 316SS, 4.872 in Shaft, 6.000 in Bore, 0.500 in Width
  • Shipping Weight: 0.27 lbs
  • Brand: KLOZURE®
  • Style/Model: Model 61
  • Shaft Size (inch): 4.872
  • Shaft Size (mm): 123.75
  • Bore Size (inch): 6.000
  • Bore Size (mm): 152.40
  • Width (inch): 0.500
  • Width (mm): 12.70
  • Lip Material: GYLON
  • Split or Solid: Solid
  • Case Material: 316SS
  • Configuration Type (Seals): Single Lip
  • Lip Base Material Abbreviation: PTFE
  • Lip Base Material Name: PTFE
  • Max Temperature (C): 204
  • Max Temperature (F): 400
  • Spacers Exist: false
  • Standard/Special: Standard
  • UPC Code: 717744755423
  • Primary Dimensional Unit of Measure: Imperial
  • Pressure Max (bar): 10.34
  • Pressure Max (psi): 150
  • Max Shaft Surface Speed (meter/sec): 10.2
  • Max Shaft Surface Speed (feet/min): 2,000

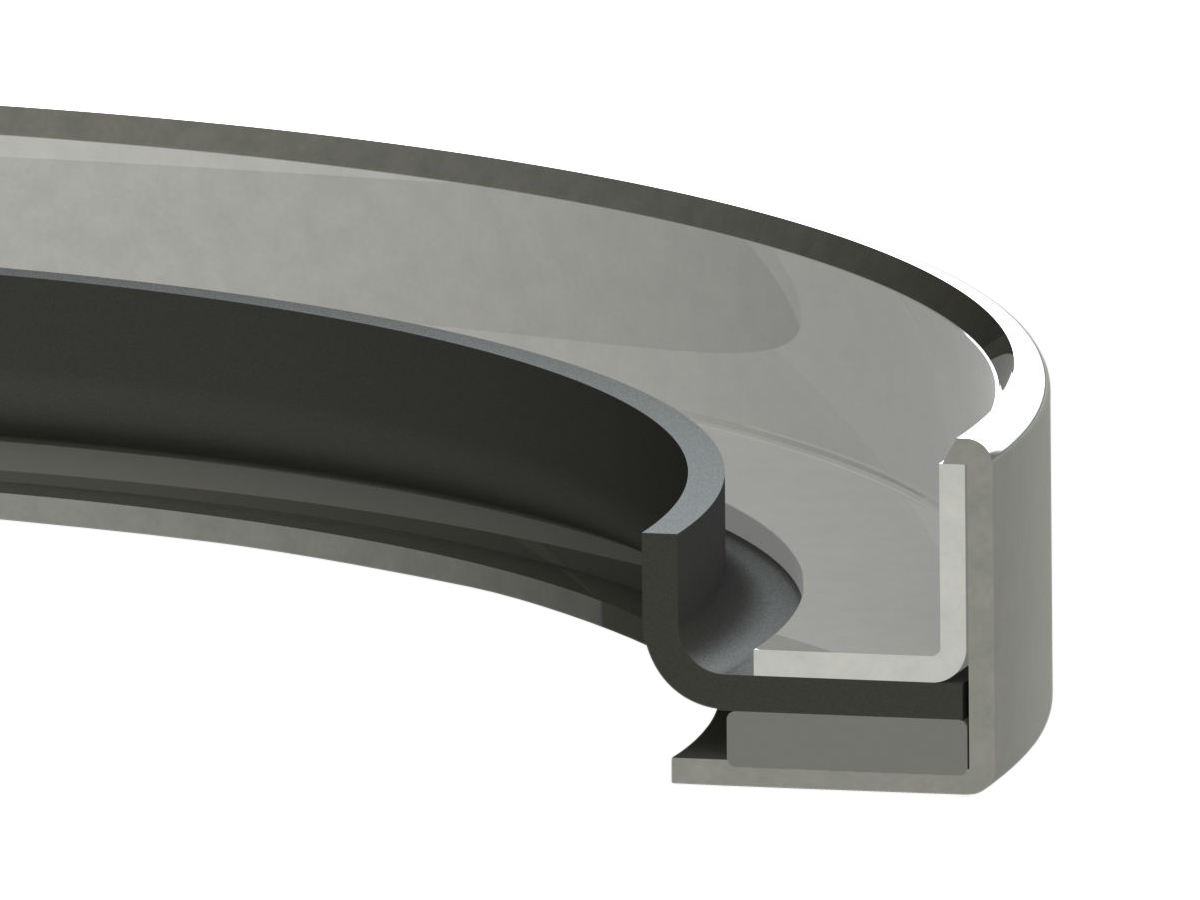

The Model 61 is an assembled seal for high-pressure applications. Its GYLON® element offers excellent chemical resistance. Dry running up to 800 fpm (3.5 m/s). Model 61 is the perfect product when pressure, or chemicals are present. Using many different blends of GYLON® material, the Model 61 can handle some of the harshest chemicals found in industry. Garlock produces GYLON® in a process that has been specially developed.

  • Resumen

Features and Benefits:

  • Assembled seal for high-pressure  and in extreme vacuum applications
  • GYLON® element offers excellent chemical resistance
  • Useable in food and pharma applications (FDA)
  • Good to excellent dry running capability. Dry running up to 800 fpm (3.5 m/s).
  • Wear resistant and low friction

Typical Applications:

  • Aggressive chemicals
  • FDA
